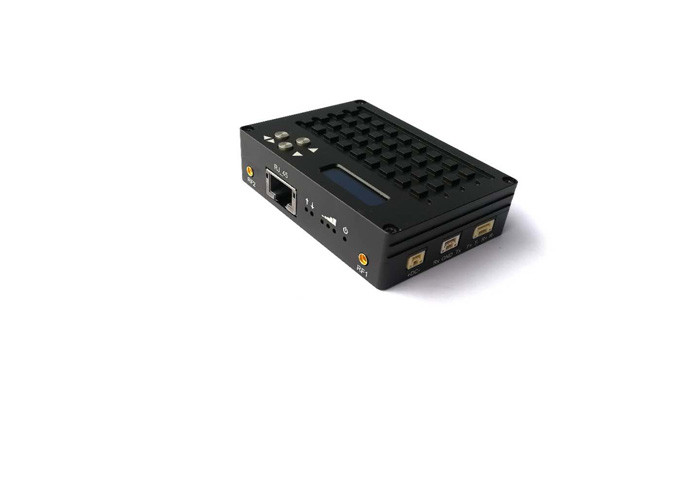

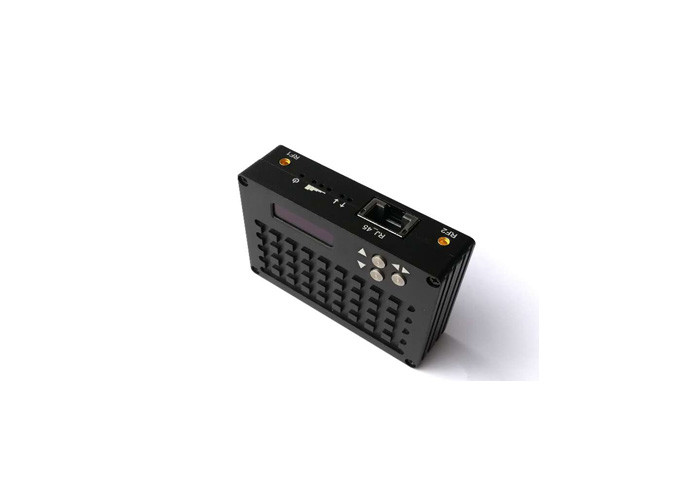

Mini UAV Wireless HDMI Video Transmitter , UAV System Wireless Video Sender

Mini UAV Wireless HDMI Video Transmitter , UAV System Wireless Video Sender

  • Mini UAV Wireless HDMI Video Transmitter , UAV System Wireless Video Sender
  • Mini UAV Wireless HDMI Video Transmitter , UAV System Wireless Video Sender
Mini UAV Wireless HDMI Video Transmitter , UAV System Wireless Video Sender
Product Details:
Place of Origin: Shenzhen
Brand Name: Huanuo
Model Number: HN-542
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Carton
Delivery Time: 2~3 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
DC Input Range: 7-17V DC Ethernet: 10/100 BaseT、Auto-MDI/X、IEEE 802.3 TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS
Ouput Power: 30dbm Bandwidth: 2MHZ/4MHz/8MHz
Encryption: 128 Bit AES Correction Mechanism: 32 Bit Of CRC,ARQ
Modulation: TDD_COFDM,Time Division Duplex Mode Dimension: 74mm*52mm*20mm
Weight: 90g Data Transmission: RS232/RS485/RS422
Highlight:

uav communication system

,

drone data link

Mini UAV data link full duplex TDD-COFDM video data transceiver for UAV system



Product Introduction:



HN-542 TDD_COFDM this product is our company released latest mini type pure digital wireless transmission equipment,the use of advanced time division processing technology and leading COFDM modulation technology,providing a complete two-way data transmission channel, high-definition video transmission channel, the perfect realization of real-time,high-speed mobile data, audio and video transmission.







Applications:

Compact size, light weight, widely application for UAV system, high speed railway, fire fighting, security, intelligence control and other complex environments.







Product features:



Support for up to 20Mbps data flow, adaptive dynamic stream allocation technology



Support multiple bandwidth regulation (2M/4M/8M), adaptive modulation and manual modulation mode selection



Support diversity antenna receiver



Support 128 bit AES encryption



Support transparent PTP&PMD network transmission technology



Support non line of sight (NLOS), high-speed mobile transmission



Support high standard industrial applications



Provide standard RS-232 & RS-485 + RJ45 interface



High definition OLED panel digital display, simple interface easy to operation



Small size, light weight, low power consumption





HN-542 Technical parameters

Model HN-542
Power input DC 7~17V



Ethernet

10/100 BaseT,Auto-MDI/X,IEEE 802.3
TCP,UDP,TCP/IP,ARP,ICMP,DHCP,HTTP,SNMP,FT P,DNS
Data input RS-232&RS-485-H/RS-485-F
RJ45
Output frequency 2402MHz-2482MHz,Step 1MHz adjustable
Output power 30dBm/1W
Bandwidth 2.0 MHz /4.0MHz/8.0MHz
Encryption 128 bit AES (can customized 256 bit AES)
Correction mechanism 32 bit of CRC,ARQ
Modulation TDD-COFDM,Time division duplex mode
RF Antenna interface MMCX
Parameter control By adjusting the parameters of OLED control
Dimensions 74m*52mm*20mm
Weight 90g
