Name: H.265 COFDM 1080P HD Wireless Video Sender Lightweight HD SDI Wireless Video Transmitter
Brand: Shenzhen Huanuo Innovate Technology Co.,Ltd
SKU: HN-711
Availability: InStock

Detail Information

Video Encoding:	H.265	Radio Frequency:	300MHz - 1500MHz,stepping 1MHz
Output Power:	24dBm/200mW(can Customized)	RF Interface:	MMCX
Modulation:	Cofdm	Constellation:	QPSK,QAM16,QAM64
Dimension:	60mm36mm19mm
Highlight:	H.265 HD Wireless Video Sender , COFDM HD SDI Wireless Video Transmitter , Lightweight HD SDI Wireless Video Transmitter

Product Description

the smallest 58g cofdm HD wireless transmitter lightweight video transmitter

Product introduction

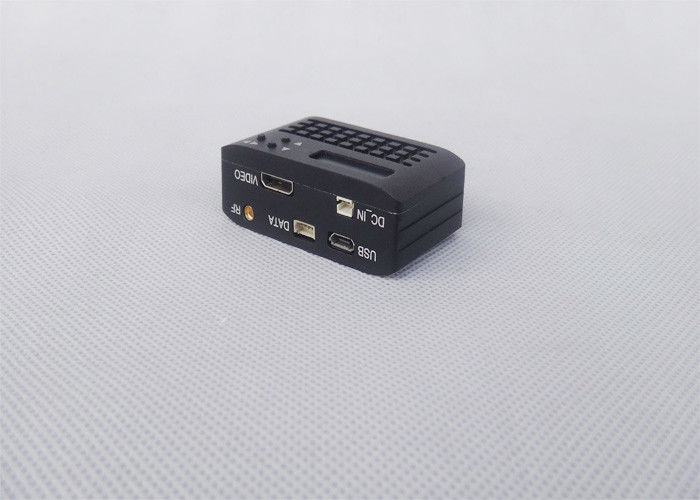

HN-711 H.265 COFDM 1080P Micro high definition wireless video transmission equipment,Using the support of non line of sight (NLOS) transmission and COFDM multi-carrier modulation technology. Using the latest H.265 compression coding method, to improve the coding efficiency and reduce the coding delay, optimization algorithm,anti error rate and further improve the image quality,at the lowest rate to achieve the best image compression.

Technical characteristics

Model	HN-711
DC input range	DC 6V - 17V
Working current	550mA_12V/6.6W
Video input	Mini HDMI:1080P/720P
Bandwidth	1/2/4/8MHz
Radio Frequency	300MHz - 1500MHz,stepping 1MHz (other frequencies on request )
Output Power	24dBm/200mW(can customized)
RF interface	MMCX
Encryption	Dynamic 128 bit AES
DATA	Transparent TTL serial data transmission
FEC	1/2,2/3,3/4,5/6,7/8
Guard Interval	1/32,1/16,1/8,1/4
Carries	2K
Video encoding	H.265
Modulation	COFDM
Constellation	QPSK,QAM16,QAM64
Parameter control mode	Through OLED display panel to set the relevant parameters
Dimensions	60mm36mm19mm
Weight	58g

Product features

H.265 high efficient full high definition 1080P coding compression
COFDM ultra narrow band modulation technology
Supporting non sight distance (NLOS), high speed mobile transmission
Low latency and low power consumption
Transparent serial port high rate transmission
Military level non standard 128 bit dynamic AES encryption
Support full band / ultra narrow band / multi bandwidth modulation (1M/2M/4M/8M)
OLED high definition digital display panel, simple interface and easy to operation.

Tag:

Place of Origin:	China
Brand Name:	Huanuo
Certification:	CE/FCC/ROHS
Model Number:	HN-711

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2~3 working days
Payment Terms:	T/T
Supply Ability:	500 pieces per month
