| Place of Origin: | China |
| Brand Name: | Huanuo |
| Certification: | CE/FCC/ROHS |
| Model Number: | HN-710 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Professional carton box package |
| Delivery Time: | 1~2 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pieces per month |
| Video Input: | SDI/HDMI/CVBS | Date Rate: | 30Mbps_RJ45 |
|---|---|---|---|
| Operating Frequency: | 300MH~860MHz,stepping 1MHz | Video Encoding: | H.265 |
| Modulation: | QPSK,QAM16,QAM64 | Encryption: | Dynamic 128 Bit AES |
| Size: | 80mm*54mm*23mm | Net Weight: | 146g |
| High Light: | wireless hdmi transmitter receiver,hdmi wifi transmitter |
||

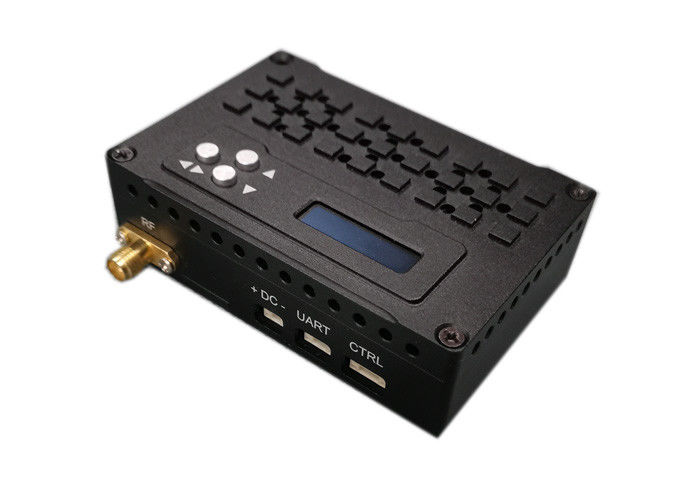

Long range COFDM HD Wireless Transmitter H.265 encoding mini size for UAV system
Key Features
Technical Specifications
| Model | HN-710 |
| DC input range | DC 6~17V |
| Working Current | 700mA_12V/10Watt |
| Video input | SDI/HDMI/CVBS |
| UART interface |
Transparent TTL serial port unidirectional data transmission |
| LAN port | 1*UDP port |
| Date Rate | 30Mbits/S_RJ45 & 115200bps_RS232 |
| Channel bandwidth | 1/2/4/8MHZ |
| Operating frequency | 300MH~2500MHz,stepping 1MHz |
| Output Power | 27dbm(can customized) |
| Encryption | Dynamic 128 bit AES |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| Guard interval | 1/32,1/16,1/8,1/4 |
| Video encoding | H.265 |
| Modulation | COFDM,QPSK,QAM16,QAM64 |
| RF interface | SMA |
| Parameter control mode | Setting related parameters by control pannel |
| Dimension | 80mm*54mm*23mm |
| Weight | 146g |
Product introduction
HN-710 H.265 HD COFDM is the latest COFDM video transmitter that supports multi-channel IP input, supports full-featured interface (HDMI/SDI/CVBS) with COFDM transmission in a small, lightweight chassis.It uses a highly integrated embedded design, ultra-linear digital predistortion RF design, high-definition coding, digital modulation, full-band RF output, supports narrowband (1MHz), low latency, transparent data long range transmission applications,improve the reliability in non-line-of-sight and complex environments.
HN-710 supports video/audio/data transmission with selectable modulations bandwidths of 1, 2, 4 and 8MHz,the video quality has been greatly improved compared to other encoders by using advanced features of the H.265 encoder.HN-710 has a simple and user-friendly LCD control panel. The user interface allows quick control of preset selection, RF power, bandwidth, RF frequency,modulator and ect.
The HN-710 transmitter is capable of AES encryption, making it ideal for high-definition digital broadcasting,public security monitoring, covert surveillance, public security, armed police, fire-figting and other secure transmission applications,widely used in multi-channel video streaming, high standard unmanned control system, intelligent control equipment.
Outline drawing
