RF HD 1080P cofdm module H.264 industrial-grade Cofdm video transmitter module

China RF HD 1080P cofdm module H.264 industrial-grade Cofdm video transmitter module supplier

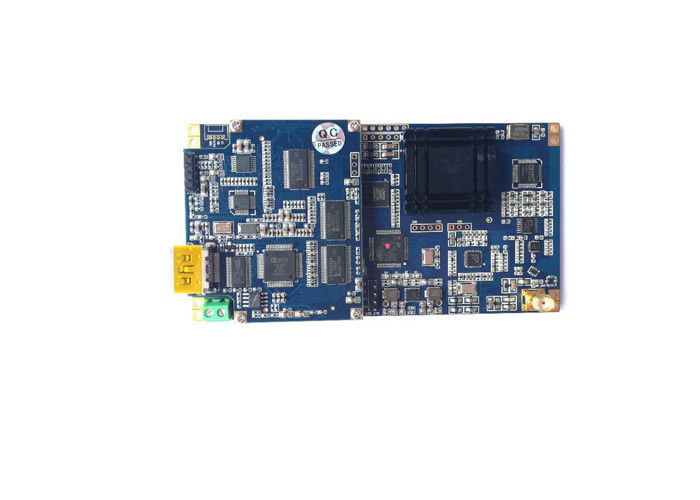

Large Image :  RF HD 1080P cofdm module H.264 industrial-grade Cofdm video transmitter module

Product Details:

Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: SK-350

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Output Power: -30dBm~0dBm(Stepping 1dBm,adjustable) Encryption: Dynamic 128 Bit AES
Video Input: HDMI+CVBS/SDI+CVBS RF Interface: SMA
Video Encoding: H.264/MPEG2 Dimensions: 120mm*65mm

RF HD 1080P cofdm module H.264 industrial-grade Cofdm video transmitter module







Product description



SK-350 H.264 COFDM wireless video transmitter module,compact size,low power consumption.Using high efficient H.264 compression encoding and core technology of the fourth generation mobile communication COFDM multicarrier modulation technique, highly integrated embedded design, single-chip digital modulation processing technology, ultra-linear digital pre-distortion (Digital Predistortion) RF design, setting digital collection, encoding, modulation, full-band RF output integrated together.SK-350 fine design can help you more quickly and easily complete COFDM modulation standard for HD wireless video transmission equipment, available to high-definition digital broadcasting, security systems, public security, armed police, fire fighting and other fields applications.This model is divided into HDMI+CVBS and SDI+CVBS versions.











Technical parameters







Model SK-350_HDMI,SK-350_SDI
Voltage DC 12V
Current CVBS:450mA
SDI:470mA
HDMI:540mA
Video input CVBS:480i/576i
SDI:1080_50p/60p
HDMI:1080_25p/30p/50p/60p/50i/60i
Audio channel 2 Channel
Bandwidth 2/2.5/4/8MHz
Audio coding ISO/IEC13818-3(MPEG-1)
Radio frequency 300~860MHz Stepping 1MHz(support 138MHz~4.2GHz output) Other frequency on request
Output power -30dBm~0dBm(Stepping 1dBm,adjustable)
RF interface SMA
Encryption dynamic 128 bit AES
FEC 1/2,2/3,3/4,5/6,7/8
Guard interval 1/32,1/16,1/8,1/4
Modulation COFDM 2K
Video encoding H.264/MPEG2
Parameter control method Through the LCD control panel to set the relevant parameters
Dimensions 120mm*65mm
