H.265 IP Mini Wireless Audio Transmitter Module With Dual Antenna Diversity Reception

China H.265 IP Mini Wireless Audio Transmitter Module With Dual Antenna Diversity Reception supplier

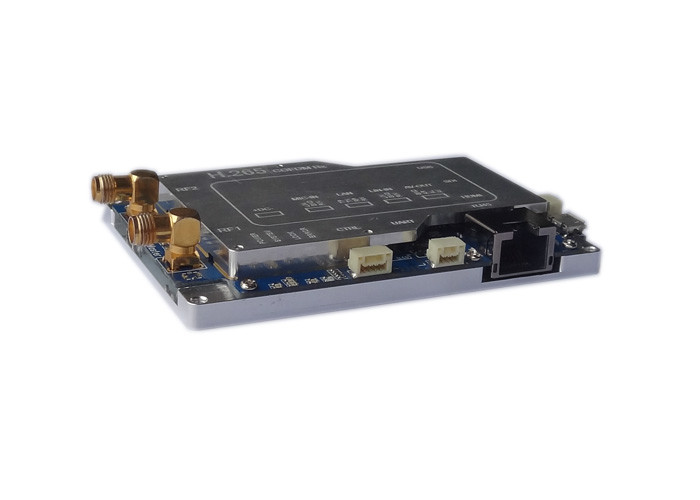

Large Image :  H.265 IP Mini Wireless Audio Transmitter Module With Dual Antenna Diversity Reception

Product Details:

Place of Origin: China
Brand Name: Huanuo
Certification: CE/FCC/ROHS
Model Number: SK-811

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Professional carton box package
Delivery Time: 1~2 working days
Payment Terms: T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
DC Input Range: DC 6~17V Operating Frequency: 300MHz~860MHz,Steping1MHz
Video Decoding: H.265 Demodulation: Cofdm
Dimensions: 106mm*65mm*17mm Channel Bandwidth: 1/2/4/8M
Decryption Method: Dynamic 128 Bit AES UART Port: Unidirectional Transparent TTL Serial Data Reception

H.265 IP COFDM Module demodulation module with dual antenna diversity reception





Product introduction



SK-811 H.265 COFDM demodulation module supports narrowband (1MHz) COFDM multi-carrier applications and uses high-speed dual-channel diversity reception technology to achieve high-sensitivity long-distance reception.The module adopts highly integrated embedded design, provides transparent IP data interface, and outputs balanced and stable high-speed data stream. It can help you to design long-distance wireless links more conveniently and quickly, and provide HD digital broadcasting, security system, Applications in public security, armed police, firefighting, etc., widely used in multimedia video streaming, high-standard unmanned control systems, and intelligent control industries.







Key features



  • COFDM ultra-narrowband demodulation technology
  • Support military-grade non-standard 128-bit AES decryption
  • Transparent network / serial port high rate transmission
  • Support dual antenna multi-carrier diversity reception
  • Support full band / ultra narrow band / multi bandwidth demodulation (1M / 2M / 4M / 8M)
  • Provide functional setting and operation based on network platform. simple interface and easy to use.





Technical characteristics





Model SK-811
DC input range DC 6~17V
Current 320mA_12V/4W
Working frequency 300MHz~860MHz,Steping1MHz
(other frequencies on request)
Channel bandwidth 1/2/4/8M
RJ_45 1*RJ_45
UART port unidirectional transparent TTL serial data reception
Decryption method Dynamic 128 bit AES
Video decoding H.265
Demodulation COFDM
Parameter control method Setting relevant parameters through network debugging software
Dimension 106mm*65mm*17mm









Outline drawing



H.265 IP Mini Wireless Audio Transmitter Module With Dual Antenna Diversity Reception
